TRIAD Amplified Radio Systems

Simple Integration. Unmatched Output Power.

This is the THPR Evolution Series

The THPR Evolution Series, a new series of Triad High Power Radios, is the next step in making a more effective way to integrate RF amplifiers, offering the most one-to-one connection to your radio to give you optimal performance.. Built with a tested, standardized design, the Evolution Series dual-channel and quad-channel high power radio systems operate in the L, S, or C-Band, giving you the unmatched output power you need for increasing data rates and longer range links.

With the Evolution Series, customers will have access to a plethora of built in features to make your integration experience easier. With a built-in heatsink and fan friendly design (fans are built-in with the quad-channel), the THPRs offer features that include an internal microcontroller, thermal protection, grounding, LEDs for both RF modules and radio, a pressure equalization vent, RF blanking, a standby mode, and the option to connect to external accessories needed for your system.

Our standardized dual-channel (MD) and quad-channel (MQ) THPRs will take Silvus or DTC radios and provide it with the most one-to-one integration process, utilizing every aspect of your radio to its optimal effectiveness. Not only will this make system integration simple, it will also give your radio system unmatched output power. THPR Evolution Series MDs are excellent choices if your radio system is used in intensive applications, such as land, mobile, air UAVS, and ground tracking. Likewise, the Evolution Series MQs, which are DO-160G tested, are your choice for applications that include large UAVs, Air, land, mobile, tower mounted, ground tracking, and more.

Our initial Evolution Series launch will offer dual-channel and quad-channel options.

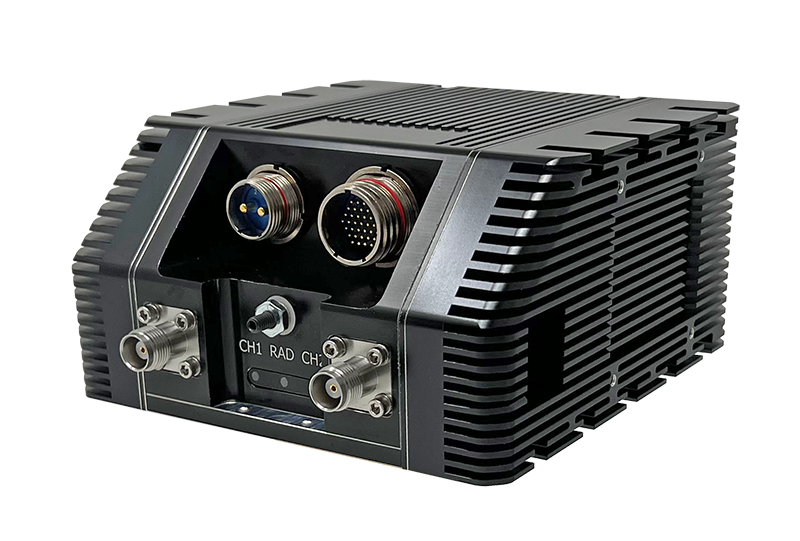

THPR MD (Dual-Channel)

THPR Model	Core Radio	Description	Resources
THPR MD Photo	DTC	The THPR Evolution Series MDs are excellent dual-channel choices if your radio system is used in intensive applications, such as land, mobile, air UAVS, and ground tracking. The two-channel high power radios use a DTC Solo8 at its core and puts out 20W per channel. The following models are availabe:   THPR1076: L-Band (1140 - 1450 MHz)   THPR1046: S-Band (2200 - 2500 MHz)   THPR1077: C-Band (4400 - 5000 MHz)	Data Sheet Data Sheet Data Sheet
THPR1076	DTC	The THPR1076 is a 40W (20W per channel) L-Band, dual MIMO radio system  blah blah blah	THPR1006 Data Sheet
THPR1046	DTC	The THPR1009-D03 is a 50W (25W per channel) C-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit is field proven, with over 180 units shipped and operating. This is a fully integrated, high power radio system that delivers 50W peak RF output power per channel, and uses the Silvus SC4210 OEM radio at 4.4 - 4.7 GHz. The THPR1009-D03 was originally designed for use in airborne platforms operating within a MANET mesh, however it can be used within any Silvus compatible mesh network.	THPR1009-D03 Data Sheet
THPR1077	DTC	The THPR1012 is a 40 Watt (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Silvus StreamCaster SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, housed in an IP66 enclosure. The THPR1012 is field proven, with dozens of units currently operating.	THPR1012 Data Sheet
THPR MD Photo	Silvus	The THPR Evolution Series MDs are excellent dual-channel choices if your radio system is used in intensive applications, such as land, mobile, air UAVS, and ground tracking. The two-channel high power radios use a Silvus Streamcaster at its core and puts out 20W per channel. The following models are available:   THPR1078: L-Band (1350 - 1440 MHz)   THPR1079: S-Band (2200 - 2500 MHz)   THPR1080: C-Band (4400 - 4940 MHz)	Data Sheet Data Sheet Data Sheet
THPR1078	Silvus	The THPR1019 is an ultra SWaP sensitive, 40W (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Silvus SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, in the lightest package available while maintaining the OEM Silvus connectors for easy integration. The THPR1019 is targeted at SWaP sensitive unmanned platforms. The THPR1019 is field proven, with dozens of units sold.	THPR1019 Data Sheet
THPR1079	Silvus	The THPR1019-D03 is an ultra SWaP sensitive, 40W (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and Data links. The unit combines the Silvus SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, in the lightest package available. The THPR1019-D03 is targeted at SWaP sensitive unmanned platforms. The THPR1019-D03 is field proven, with dozens of units sold.	THPR1019-D03 Data Sheet
THPR1080	Silvus	The THPR1021 is a 20W (10W per channel) C-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The THPR1021 combines the Silvus SC4210P-467-O with dual bidirectional amplifiers providing longer range and higher data rate than available with the off-the-shelf radio. The unit has been field tested as part of the US Army’s PEO C3T’s Capability Set 2025, and was given rave reviews.	THPR1021 Data Sheet

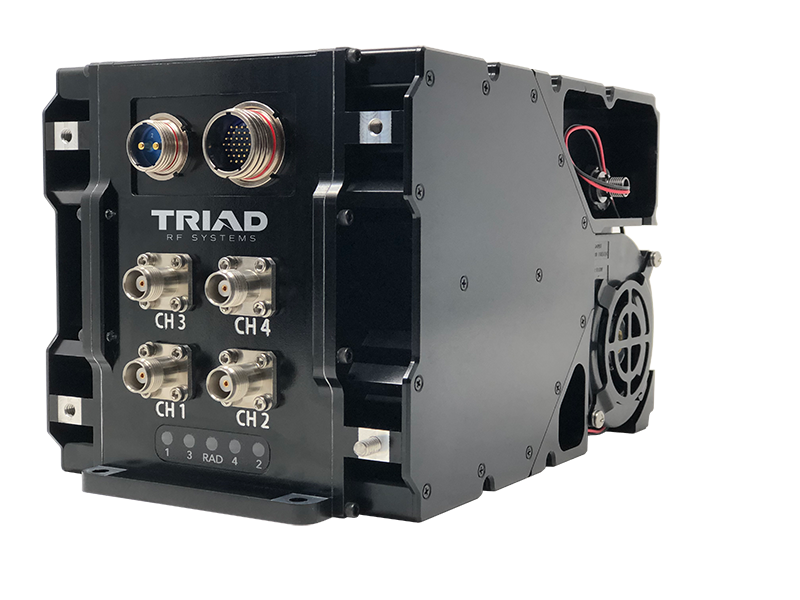

THPR MQ (Quad-Channel)

THPR Model	Core Radio	Description	Resources
THPR MQ Photo	Silvus	The THPR Evolution Series MQs are excellent dual-channel choices if your radio system is used in intensive applications, such as land, mobile, air UAVS, and ground tracking. The two-channel high power radios use a Silvus Streamcaster at its core and puts out 20W per channel. The following models are available:   THPR MQ L-Band: 20W per channel L-Band (1350 - 1440 MHz)   THPR1060: 50W per channel S-Band (2200 - 2500 MHz)   THPR1070: 20W per channel C-Band (4700 - 5000 MHz)   THPR1071: 20W per channel C-Band (4400-4940 MHz)	Data Sheet Data Sheet Data Sheet Data Sheet
THPR MQ L-Band	Silvus	The THPR MQ L-Band  is a 80W (20W per channel) L-Band, quad MIMO radio system  blah blah blah	THPR1009-D03 Data Sheet
THPR1060	Silvus	The THPR1012 is a 40 Watt (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Silvus StreamCaster SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, housed in an IP66 enclosure. The THPR1012 is field proven, with dozens of units currently operating.	THPR1012 Data Sheet  THPR1012 Product Introduction
THPR1070	Silvus	The THPR1019-D03 is an ultra SWaP sensitive, 40W (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and Data links. The unit combines the Silvus SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, in the lightest package available. The THPR1019-D03 is targeted at SWaP sensitive unmanned platforms. The THPR1019-D03 is field proven, with dozens of units sold.	THPR1019-D03 Data Sheet
THPR1071	Silvus	The THPR1021 is a 20W (10W per channel) C-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The THPR1021 combines the Silvus SC4210P-467-O with dual bidirectional amplifiers providing longer range and higher data rate than available with the off-the-shelf radio. The unit has been field tested as part of the US Army’s PEO C3T’s Capability Set 2025, and was given rave reviews.	THPR1021 Data Sheet

The THPR Can Be Custom-Designed to Help Customers Go Further

THPR Model	Core Radio	Description	Resources
THPR1006	Microhard	The THPR1006 is a 25W (12.5W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Microhard pMDDL2450 as well as two bi-directional high power amplifiers to achieve distances in excess of 120 kilometers, dependent on data rate, air, and ground antenna arrangements. This SWaP-sensitive unit will work with off-the-shelf Microhard radios, or within an existing Microhard mesh arrangement.	THPR1006 Data Sheet THPR1006 Test Report
THPR1009-D03	Silvus	The THPR1009-D03 is a 50W (25W per channel) C-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit is field proven, with over 180 units shipped and operating. This is a fully integrated, high power radio system that delivers 50W peak RF output power per channel, and uses the Silvus SC4210 OEM radio at 4.4 - 4.7 GHz. The THPR1009-D03 was originally designed for use in airborne platforms operating within a MANET mesh, however it can be used within any Silvus compatible mesh network.	THPR1009-D03 Data Sheet
THPR1012	Silvus	The THPR1012 is a 40 Watt (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Silvus StreamCaster SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, housed in an IP66 enclosure. The THPR1012 is field proven, with dozens of units currently operating.	THPR1012 Data Sheet  THPR1012 Product Introduction
THPR1019	Silvus	The THPR1019 is an ultra SWaP sensitive, 40W (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Silvus SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, in the lightest package available while maintaining the OEM Silvus connectors for easy integration. The THPR1019 is targeted at SWaP sensitive unmanned platforms. The THPR1019 is field proven, with dozens of units sold.	THPR1019 Data Sheet
THPR1019-D03	Silvus	The THPR1019-D03 is an ultra SWaP sensitive, 40W (20W per channel) S-Band, dual MIMO radio system used for long distance unmanned C2 and Data links. The unit combines the Silvus SC4210-245-O radio at 2.2 - 2.5 GHz, with two bi-directional high power amplifiers, in the lightest package available. The THPR1019-D03 is targeted at SWaP sensitive unmanned platforms. The THPR1019-D03 is field proven, with dozens of units sold.	THPR1019-D03 Data Sheet
THPR1021	Silvus	The THPR1021 is a 20W (10W per channel) C-Band, dual MIMO radio system used for long distance unmanned C2 and data links. The THPR1021 combines the Silvus SC4210P-467-O with dual bidirectional amplifiers providing longer range and higher data rate than available with the off-the-shelf radio. The unit has been field tested as part of the US Army’s PEO C3T’s Capability Set 2025, and was given rave reviews.	THPR1021 Data Sheet
THPR1039	DTC	The THPR1039 is a 10W (5W per channel), L-Band, dual MIMO radio system used for long distance UAS video and C2 link, which achieves RF link ranges in excess of 50km when used in both ground and air radio segments. The unit combines a DTC  Solo8 MIMO radio, high power amplification, and custom filtering into a single, easy to integrate, SWaP-sensitive package. Its magnesium alloy housing helped achieve a final weight of 32oz (<1 kg) and a ~33% weight reduction compared with an aluminum-hosted unit.	THPR1039 Data Sheet THPR1039 Product Introduction
THPR1055	Silvus	The THPR1055 is a 80 Watt (20W per channel) S-Band, quad MIMO radio system used for long distance unmanned C2 and data links. The unit combines the Silvus StreamCaster SC4410-235-O radio at 2.2 - 2.5 GHz, with four bi-directional high power amplifiers, housed in an IP66 enclosure. The THPR1055 is field proven, with dozens of units currently operating.	THPR1055 Data Sheet

Our THPRS Can Work with Your Preferred Radio

Core Radio	Description	Datasheet
Mobilicom Radio System	The Mobilicom series of THPR High Power Radio Systems utilize SkyHopper and MCU30 radios at its core. These low-SWaP and fully integrated high power systems support UHF, S, and C bands and offer output power levels of up to 50W per channel. Triad THPR series radios also offer many features and enhancements over their OEM radio counterparts, right out of the box. Check out these data sheets for more information or request a quote.	Mobilicom Range Enhanced Amplified Radios
Silvus Streamcaster	Triad offers a number of THPR High Power Radio Systems that utilize the Silvus Streamcaster SC4200 and SC4400 as a core radio. These fully integrated high power systems support UHF, L, S and C bands and offer output power levels of up to 100W per channel. Triad THPR series radios also offer many features and enhancements over their OEM radio counterparts, right out of the box. Check out these data sheets for more information or request a quote.	Silvus SC4200 C-Band Summary Sheet Silvus SC4200 L-Band Summary Sheet Silvus SC4200 S-Band Summary Sheet Silvus SC4400 C-Band Summary Sheet.pdf Silvus SC4400 L-Band Summary Sheet Silvus SC4400 S-Band Summary Sheet
DTC SOLO8	The DTC series of THPR High Power Radio Systems utilize the 2x2 MIMO DTC SOLO8 as a core radio. These low-SWaP and fully integrated high power systems support UHF, L, S and C bands and offer output power levels of up to 100W per channel. Triad THPR series radios also offer many features and enhancements over their OEM radio counterparts, right out of the box. Check out these data sheets for more information or request a quote.	DTC C-Band Summary Sheet DTC L-Band & S-Band Summary Sheet
Microhard pMDDL	The Microhard series of THPR High Power Radio Systems utilize the 2x2 MIMO pMDDL as a core radio. These low-SWaP and fully integrated high power systems support UHF, L, S and C bands and offer output power levels of up to 100W per channel. Triad THPR series radios also offer many features and enhancements over their OEM radio counterparts, right out of the box. Check out these data sheets for more information or request a quote.	Microhard pMDDL C-Band Summary Sheet Microhard pMDDL L-Band Summary Sheet Microhard pMDDL S-Band Summary Sheet

Our THPRS Can Work with Your Preferred Radio

The THPR product line continues Triad’s adage to work with the radio your system relies on. These low-SWaP and fully integrated high power systems support L, S, and C bands and offer output power levels that maximize your radio’s potential. Here are just a few examples of the different radio integrations requested by customers that we achieved.

Triad offers a number of dual-channel and quad-channel THPRs that utilize the Silvus Streamcaster SC4200 and SC4400 as a core radio. These fully integrated high power systems support L, S, and C bands and offer output power levels that range from ultra-SWaP-sensitive THPRs putting out 20Ws all the way up to optimal high power radio system designs outputting a total of 200W. Triad’s THPR series radios also offer many features and enhancements over their OEM radio counterparts, right out of the box. Check out ultra-SWap-sensitive THPRs, such as THPR1019-D03 and THPR1021, and more standard THPRs like the THPR1055.

The DTC series of THPRs utilize the 2x2 MIMO DTC SOLO8 as a core radio. These low-SWaP, fully integrated high power radio systems support L, S, and C bands and offer output power levels of up to 100W per channel. Previously, DTC supported an ultra-SWaP-sensitive THPR that showcased Triad’s engineering prowess and exceeded customer expectations. Check out the THPR1039, a high power radio system with a magnesium housing to help meet UAS weight restrictions.

One of our earliest THPRs boasted a Microhard 2x2 MIMO pMDDL as a core radio. This low-SWaP and fully integrated high power radio system was requested to operate in the S bands and offers output power levels of 25W over two channels. Check out the THPR1006 for a look into how we can integrate your Microhard radio.

Finally, Triad RF Systems partnered up with Mobilicom to develop a series of THPR High Power Radio Systems that utilize SkyHopper and MCU30 radios at its core. These low-SWaP and fully integrated high power systems support from the UHF band to C band and can offer output power levels of up to 50W per channel. The THPRs have cross-application appeal and can be the right fit within the military and industrial UxV drone and robotic segments. For a deeper dive on how a Moblilicom THPR can help you, check out this specification summary sheet.

Whether it is a standard off-the-shelf solution or a customized need to your radio system needs. To learn more about how our THPRs can work with your radios and make the integrations process that much easier, fill out the request a quote form below.
